ENERGY RATING : 5

Aerowings

CAPACITY(BTU) : 23900

INTRODUCTION:	BKZ Series System 3 Aircon
KEY FEATURE 1:	NanoeX Generator Mark3
KEY FEATURE 2:	Inside Cleaning on Demand Function
KEY FEATURE 3:	Aerowings
ECO-FRIENDLY CERTIFIED:	Yes
ENERGY RATING:	5
ENERGY CONSUMPTION:	2704kWh
ENERGY COST:	730
COMPRESSOR TYPE:	Inverter
CAPACITY(BTU):	23900
NOISE LEVEL:	54
MY INDOOR UNIT 1:	9000
UNIT SIZE 1:	780 x 542 x 289
UNIT WEIGHT 1:	23
MY INDOOR UNIT 2:	9000
UNIT SIZE 2:	780 x 542 x 289
UNIT WEIGHT 2:	23
MY INDOOR UNIT 3:	18000
UNIT SIZE 3:	824 x 619 x 299
UNIT WEIGHT 3:	29
FCU_OPTION_1:	9K
FCU_OPTION_2:	9K
FCU_OPTION_3:	18K
WIDTH:	970
HEIGHT:	395
DEPTH:	320
WEIGHT:	50

Power Consumption:	1,440 (520 - 3,000)
Key Features (3):	Inside Cleaning On Demand - Remove Moisture And Cleanse Inside The Aircon Unit To Inhibit Up To 99% Of Bacteria And Viruses
Timers:	Yes
Air Direction Control:	UP-Down, LefT-Right
Operating Modes/features (3):	24-Hour Nanoex Protection - Switch On Nanoex Mode Independently Without The Cooling Function
Air Flow Control Step (cool/fan):	Yes
Energy Efficiency:	5 Ticks
Dimensions (outdoor Unit):	695 [h] X 875 (+95) [w] X 320 [d] mm
Operating Modes/features:	Aerowings - 4-Way Auto Swing To Adjust The Air Swing To Left And Right, Up And Down
Cooling Capacity (indoor Unit):	9000btu X2 /18000btu X 1
Operating Modes/features (2):	Panasonic Comfort Cloud App - Control Multiple Aircon Units Remotely Using The Application
Registration no:	MelS-PaN-Ac220034
Cooling Capacity (outdoor Unit):	23,900 (9,550 - 38,200)
Dimensions (indoor Unit):	9000btu: 295 [h] X 890 [w] X 244 [d] X2 Mm /18000btu :295 X 1060 X 249 mm
Key Features:	BuilT-In Wifi And Easy Connection - Easier Setup By Simply Scanning The Qr Code Inside The Front Panel Of The Fancoil Unit
Warranty:	Standard 1-Year Warranty
Auto Clean Function:	Yes
Key Features (2):	Nanoex Generator Mark 3 - Inhibits Bacteria And Viruses 4x Faster
POWER CONSUMPTION:	1,440 (520 - 3,000)
TIMERS:	YES
COOLING CAPACITY (INDOOR UNIT):	9000BTU X2 /18000BTU X 1
KEY FEATURES (3):	INSIDE CLEANING ON DEMAND - REMOVE MOISTURE AND CLEANSE INSIDE THE AIRCON UNIT TO INHIBIT UP TO 99% OF BACTERIA AND VIRUSES
AUTO CLEAN FUNCTION:	YES
WARRANTY:	STANDARD 1-YEAR WARRANTY
AIR FLOW CONTROL STEP (COOL/FAN):	YES
KEY FEATURES (2):	NANOEX GENERATOR MARK 3 - INHIBITS BACTERIA AND VIRUSES 4X FASTER
OPERATING MODES/FEATURES (2):	PANASONIC COMFORT CLOUD APP - CONTROL MULTIPLE AIRCON UNITS REMOTELY USING THE APPLICATION
REGISTRATION NO:	MELS-PAN-AC220034
OPERATING MODES/FEATURES (3):	24-HOUR NANOEX PROTECTION - SWITCH ON NANOEX MODE INDEPENDENTLY WITHOUT THE COOLING FUNCTION
COOLING CAPACITY (OUTDOOR UNIT):	23,900 (9,550 - 38,200)
DIMENSIONS (INDOOR UNIT):	9000BTU: 295 [H] X 890 [W] X 244 [D] X2 MM /18000BTU :295 X 1060 X 249 MM
KEY FEATURES:	BUILT-IN WIFI AND EASY CONNECTION - EASIER SETUP BY SIMPLY SCANNING THE QR CODE INSIDE THE FRONT PANEL OF THE FANCOIL UNIT
AIR DIRECTION CONTROL:	UP-DOWN, LEFT-RIGHT
MIN DELIVERY DATE:	14/10/25
DIMENSIONS (OUTDOOR UNIT):	695 [H] X 875 (+95) [W] X 320 [D] MM
OPERATING MODES/FEATURES:	AEROWINGS - 4-WAY AUTO SWING TO ADJUST THE AIR SWING TO LEFT AND RIGHT, UP AND DOWN
ENERGY EFFICIENCY:	5 ticks
SKU:	IP214802

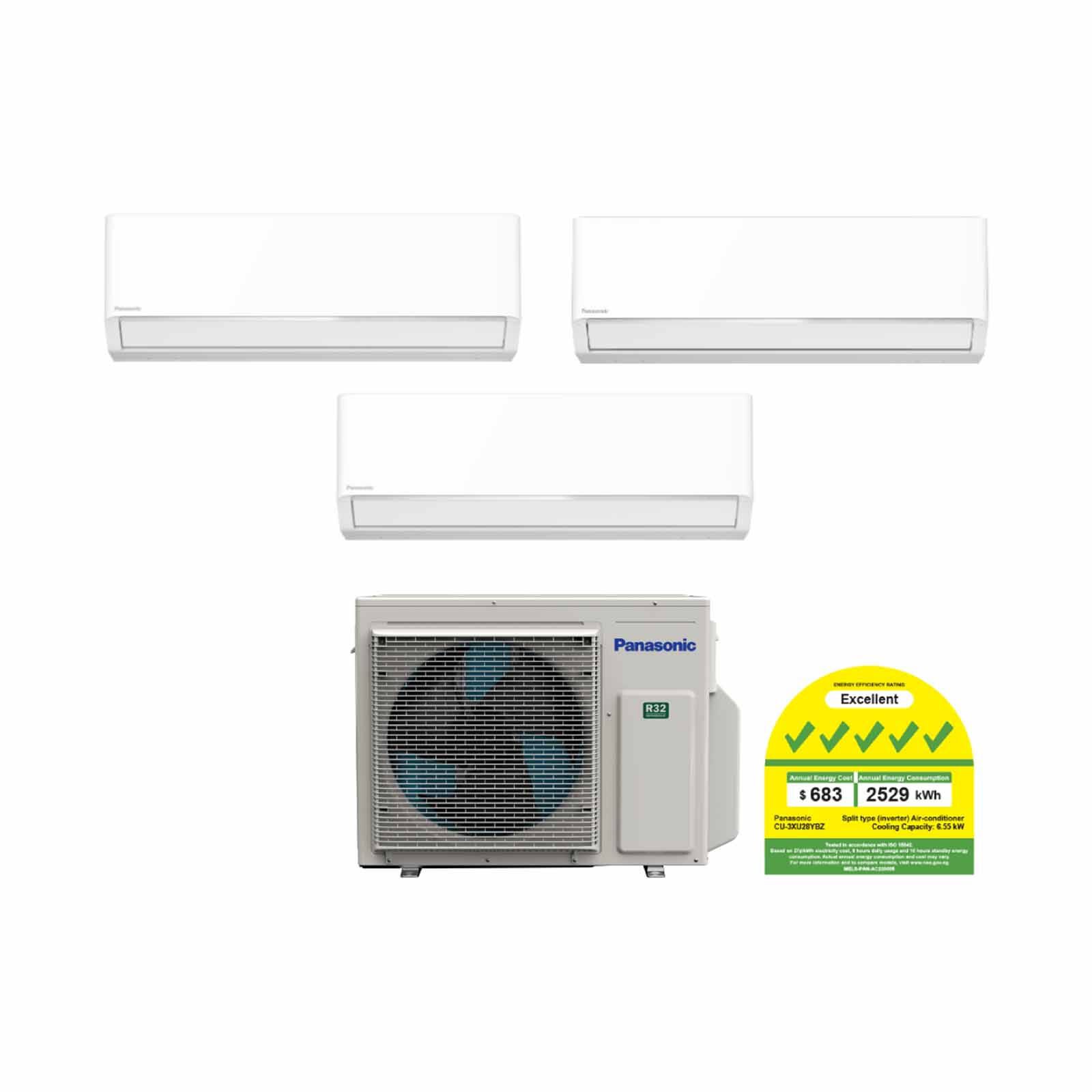

PANASONIC Panasonic 33k Condenser Bkz Series System 3 (9000btu X2, 18000btu X1) CU-4XU33YBZ + CS-XU9BKZW X 2/CS-XU18BKZW

Free Aircon Site Survey

Free Warranty for System 3

Free Material Upgrade for System 3

Get up to $300 off min. $799 spend

Item is currently on an indent basis - Depending on product lead time, delivery day may varies

Product Features

S$ 3,897.00 ~~Price reduced from RRP S$ 4,326.00 to~~ (Save 10%)

PANASONIC Panasonic 33k Condenser Bkz Series System 3 (9000btu X2, 18000btu X1) CU-4XU33YBZ + CS-XU9BKZW X 2/CS-XU18BKZW

Free Aircon Site Survey

Free Warranty for System 3

Free Material Upgrade for System 3

Get up to $300 off min. $799 spend

Item is currently on an indent basis - Depending on product lead time, delivery day may varies
